JBL Bar 500 590W Dolby Atmos® 3D surround sound, PureVoice technology, wireless 10" subwoofer.

Audio & Sound System

• Channels: 5.1‑channel (soundbar + wireless subwoofer)
• Total maximum output power (THD 1%): 590 W
  • Soundbar output power: 290 W
  • Subwoofer output power: 300 W
• Soundbar transducers: 4 × racetrack drivers (46 × 90 mm) + 3 × 0.75″ (20 mm) tweeters

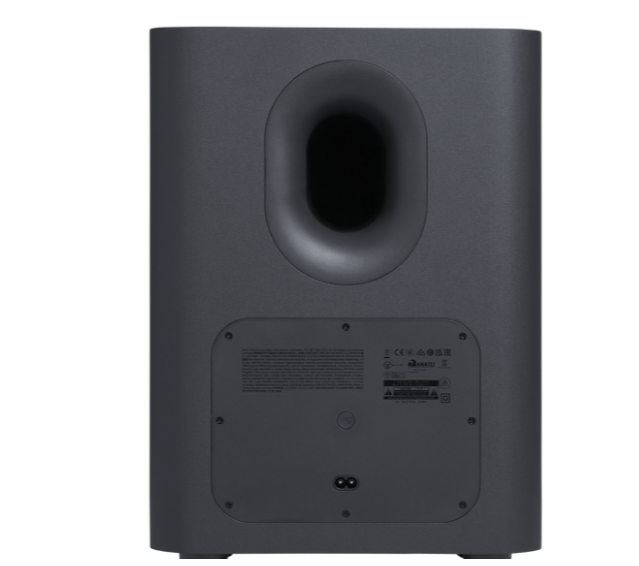

• Subwoofer transducer: 10″ (260 mm) wireless subwoofer
• Frequency response: 35 Hz – 20 kHz (–6 dB)

Connectivity & Inputs / Audio Support

• HDMI: 1 × HDMI input, 1 × HDMI output with eARC support + HDR pass-through (HDR10, Dolby Vision)
• Optical digital audio input: 1
• Wireless: Bluetooth (for streaming audio)
• USB: USB port (playback supported in some region versions)

Features

• Supports 3D‑surround sound via Dolby Atmos + MultiBeam™
• “PureVoice” Dialogue Enhancement improves voice/dialogue clarity
• Built‑in calibration and room-sound optimization via companion app

Physical / Power / General

• Power supply: 100‑240 V AC, 50/60 Hz
• Standby power consumption: < 2.0 W
• Operating temperature: 0 °C – 45 °C

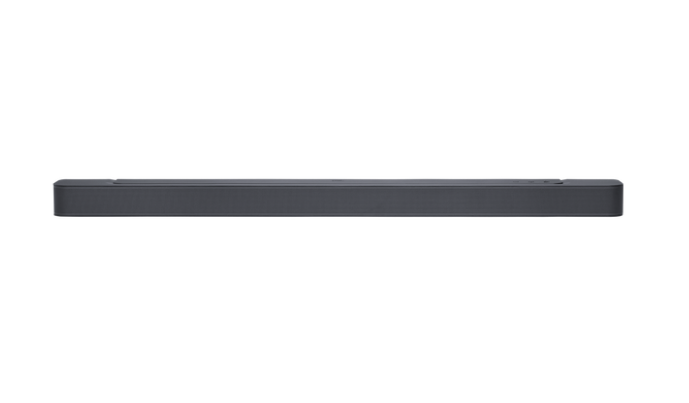

• Soundbar dimensions (W × H × D): 1017 × 56 × 103.5 mm
• Subwoofer dimensions (W × H × D): 305 × 440.4 × 305 mm
• Soundbar weight: ~ 2.8 kg
• Subwoofer weight: ~ 10 kg
